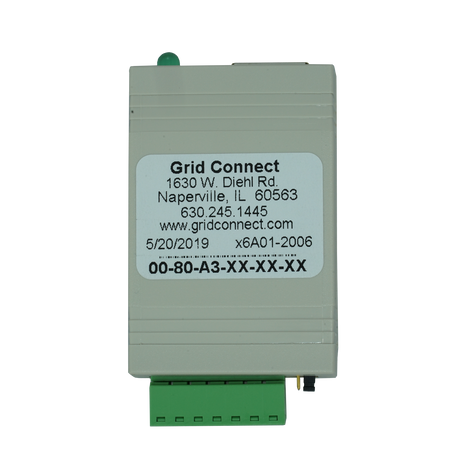

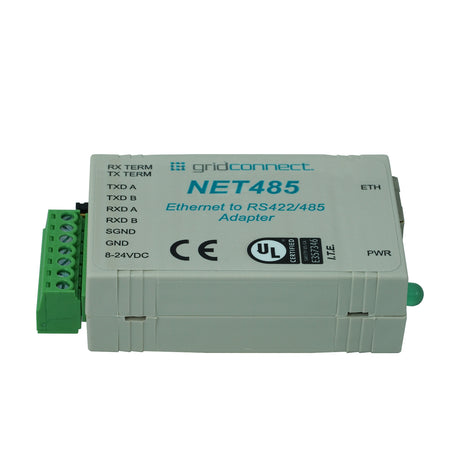

NET485 - RS485 Ethernet Adapter
NET485 - RS485 Ethernet Adapter
Product Images
NET485 - RS485 Ethernet Adapter: No mount - No Encryption
$109.95
5.0 stars 5.0 (5) See customer reviews
SKU: GC-NET485-01
MPN: GC-NET485-01
Manufacturer: Grid Connect Inc.
Stock Status: In stock
Delivery: Ships same or next business day
Qualifies for Free shipping
Mounting Option
-
$109.95
-
$119.95
-
$114.95
Encryption
-
$109.95
-
$136.95
We've Got You Covered
1 year comprehensive warranty support for all products
30 day money back guarantee
*some exceptions apply
Product Information
Product Description
The NET485 RS485 Ethernet adapter allows you to connect either RS422 or RS485 transceivers to Ethernet enabling remote serial communications up to 4,000 feet. This makes the device web enabled and eliminates the limitations generally imposed by cable length.
Two NET485s can be used as a cable replacement through the use of "serial tunneling" through TCP/IP or Ethernet.
With the RS485 two-wire mode, you can connect the NET485’s serial interface to several devices within a multi-drop network.
The NET485 RS485 Ethernet adapter is based off of the XPort Serial to Ethernet device server. It provides the same features as a high performance device server, including a built-in web server for user customized web pages.
RS485 Ethernet Adapter Key Features
Commercial and Industrial Applications - Powered by external DC voltage from 8 to 30VDC, this RS485 Ethernet adapter is connected to directly to the terminal block. In addition to a wide temperature specification of 30 to +60 degrees C, the NET485 is easily adaptable to both commercial and industrial use cases. It can be seamlessly integrated with fire panels, security panels, POS terminals and machines, vending machines, home theater automation, industrial heavy equipment integration and more.
Compact, Easy to Use, and Affordable - The NET485 RS485 Ethernet adapter is an extremely compact, plug-and-play device that can be configured easily via telnet or web page. It includes a CD with PC setup and Virtual COM Port Software. Already affordably priced, you can receive additional discounts when you buy in larger quantities. OEM versions are also available with a minimum order.
Order Summary
SKU |
Mounting Option |
Encryption |
Manufacturer Part # (MPN) |
|---|---|---|---|
| GC-NET485-01 | None | None | GC-NET485-01 |
| GC-NET485-01-DIN | DIN Rail Clip & Strap | None | GC-NET485-01 |
| GC-NET485-01-DIN-E | DIN Rail Clip & Strap | Encryption | GC-NET485-01 |
| GC-NET485-01-E | None | Encryption | GC-NET485-01 |
| GC-NET485-01-SMS | Surface Mount Strap | None | GC-NET485-01 |
| GC-NET485-01-SMS-E | Surface Mount Strap | Encryption | GC-NET485-01 |
Features
- Local or Worldwide Internet Connection
- 6-Page built-in Web Server, configuration and user pages
- Jumpers to enable optional Tx/Rx Termination Resistors

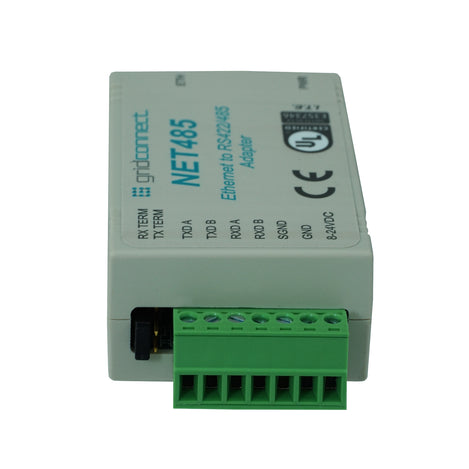

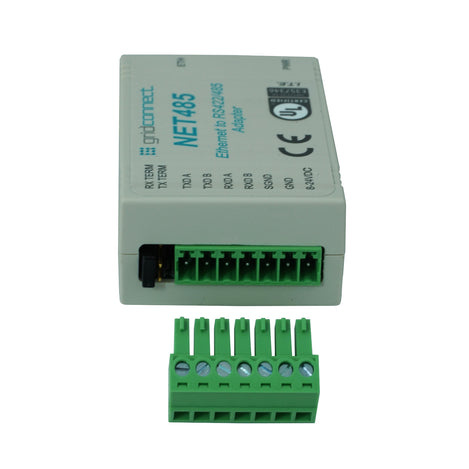

- 7 pole terminal block for all signals and power connections
- Configurable for 128, 192 or 256-bit AES Encryption (defaults to no encryption)
- Serial Device Server using XPort
- Auto Sensing 10BASET/100BASE-TX compliant
- Selectable baud rate to 921K
- 7,8 data bits, multi-drop control
- Ethernet Activity, Status, and Power LEDs
- Includes CD with PC Setup and Virtual COM Port Software
- UL and CE certified
Documents and Drivers
Documentation
NET485 Datasheet
NET485 User Manual
NET485 Quick Start Guide
Serial to Ethernet Product Support
NET485 REACH Certification
Downloads
NET485 DeviceInstaller
NET485 Com Port Redirector
Specifications
Baud Rate
Serial: 2400, 4800, 9600, 19.2k, 38.4k, 115.2K,…921K
Certifications
UL, CE
Connector(s)
- Network: 10/100Mbit Ethernet - Auto-Sensing
- Serial: 7-pole terminal blockfor power and data line
Dimensions
- 78.7 x 40.1 x 20.2 mm (3.1 x 1.6 x .794 in )
- 63.5 x 40.1 x 20.2 mm (2.5 x 1.6 x .794) box size, no screw terminal
Indicators LED
Ethernet activity, Power LED's
Mounting

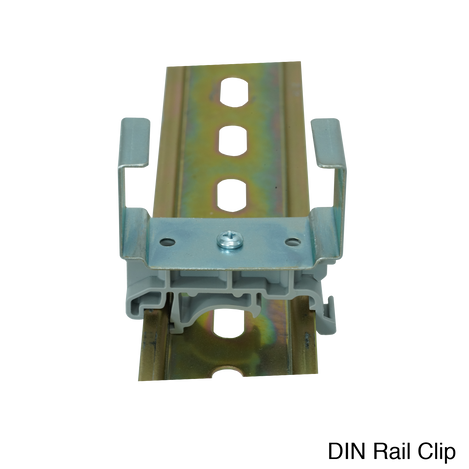

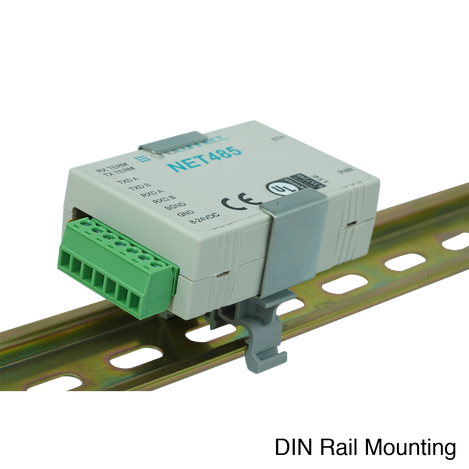

Optional DIN Rail and Surface Mount clips available
MPN
GC-NET485-01
Power Supply
8-24V DC (1 watt)
Protocols
TCP/IP, UDP/IP, ARP, ICMP, SNMP, TFTP, Telnet, DHCP, BOOTP, HTTP and AutoIP
Security/Protection
128-, 192- or 256-bit AES Rinjdael Encryption (optional)
Serial Types
RS485, RS422
Software
Includes CD with PC Setup and Virtual COM Port Software
