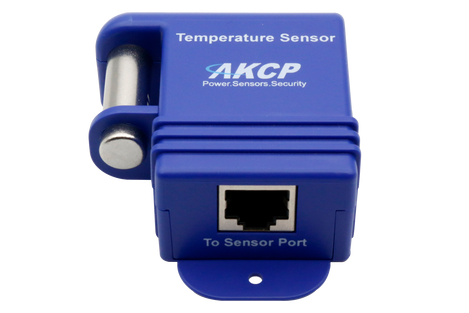

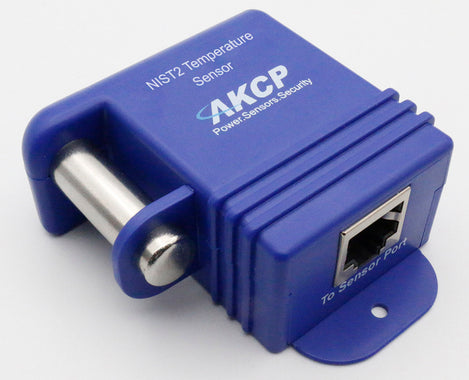

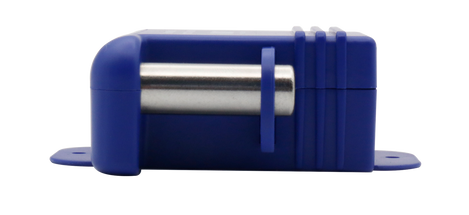

Temperature Data Logger - Ethernet Temperature Sensor: 15 ft cable

$80.00

5.0 stars 5.0 (1) See customer reviews

SKU: GC-AK-TMP-15

MPN: TMP15

Manufacturer: AKCP

Stock Status: In stock

Delivery: Ships same or next business day
Qualifies for Free shipping

Closeout Sale on select option, limited quantity available.

Choose Type

We've Got You Covered

delivery truck

1 year comprehensive warranty support for all products

hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

Get 20% off on the Water Resistant Pipe 15 Ft option while supplies last.



Authorized North America Distributor Stamp

The Temperature Data Logger can be used with any AKCP sensorProbe or securityProbe controller. There is a water resistance version of the sensor available if there is a chance that the sensor end could be submersed in water.

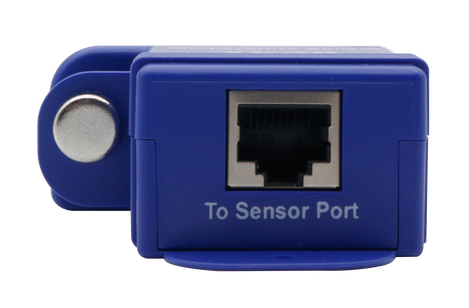

The controller auto detects the presence of the temperature sensor once it is plugged into the RJ-45 port. A built in graph option is included on all controllers for graphing temperature variations over a period of time.

Each temperature sensor has its own SNMP OID so that the data can be collected over network and graphed using external application like MRTG.

The temperature sensor can be read using included SNMP utilities to allow graphing and data logging at 0.5°C resolution.





Order Summary



Product Image

SKU

Option

Package Contents

Manufacturer Part # (MPN)

CAT5 Enabled Image
GC-AK-TMP-00
CAT5 Enabled
Temperature Data Sensor and 5 Ft cable with RJ-45 connectors
TMP00
DISCONTINUED
1 Ft Cable Image
GC-AK-TMP-01
1 Ft Cable
1 Ft cable with sensor and RJ-45 connector
TMP01
DISCONTINUED
15 Ft Cable Image
GC-AK-TMP-15
15 Ft Cable
15 Ft cable with sensor and RJ-45 connector
TMP15
Water Resistant Pipe 15 Ft Image
GC-AK-TMP-WP15
Water Resistant Pipe 15 Ft
15 Ft water resistant cable with sensor and RJ-45 connector
TMPWP15
Now 20% off

Features

  • Never needs Calibration
  • SensorProbe autodetects the presence of the temperature sensor
  • Up to 2 temperature sensors per sensorProbe2, 8 per sensorProbe8 and cameraProbe8
  • Full autosense including disconnect alarm
  • CAT5 Enabled version allows you to add up to 1000' of CAT5 cable to the sensor

Documents and Drivers

Documentation

Temperature Sensor Datasheet
1 Ft. Cable
View (PDF)
Temperature Sensor Datasheet
CAT5 Enabled
View (PDF)
AKCP Sensor Selection Summary View (PDF)

Specifications

CAT5 ENABLED

Allows you to add up to 1000' of CAT5 cable to the sensor.

COMMUNICATIONS CABLE

RJ-45 jack to temperature sensor using UTP CAT5 cable.

INCLUDED SOFTWARE

One reading every second.

MEASUREMENT ACCURACY

Celsius: ±0.5°C accuracy from -10°C to +75°C Fahrenheit: ±0.9°F accuracy from +14°F to +167°F

MEASUREMENT RANGE

Celsius:-55°C to +75°C Fahrenheit: -67°F to +167°F

MEASUREMENT RATE

Sensor: Semiconductor microprocessor controlled.

MEASUREMENT RESOLUTION

Celsius: 1°C increments Fahrenheit: 1°F increments

MPN

TMP00

PRODUCT POWER SUPPLY

Powered by the sensorProbe. No additional power needed.
